SPECIFICATIONS

  • Item number LR40560, LR40570
  • Item description
  1. LEDSWP75/3WO/3CCT/B/D
  2. LEDSWP120/3WO/3CCT/B/D
  • Size 14" X 8.92",
  • Shape SLIM WALLPACK
  • Dimensions
    • Length 14"
    • Width 8.92"
    • Height 4.74"
  • Finish BRONZE

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 3000K/4000K/5000K
  • Lumen 5625 - (3000K)6075 - (4000K)5850 - (5000K)7500 - (3000K)8100 - (4000K)7800 - (5000K)9375 - (3000K)10125 - (4000K)9750 - (5000K), 9000 - (3000K)9720 - (4000K)9360 - (5000K)12000 - (3000K)12960 - (4000K)12480 - (5000K)15000 - (3000K)16200 - (4000K)15600 - (5000K)
  • CRI 70

ELECTRICAL

  • Power (Wattage) 45/60/75, 72/96/120
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $9.03
  • Dimmable 0-10V
  • Power Factor 0.95
  • Input Current 0.7A
  • Frequency 50/60Hz
  • Watt Replacement 250
  • Lumen Efficacy 135
  • Operating Temp:
    • Min -40º
    • Max 113º

PACKAGING

  • UPC Barcode 793888419841
  • Master BarCode 10793888419848
  • Master Carton Dimensions:
    • Length 15.94"
    • Width 11.61"
    • Height 7.67"
  • Case Size 1

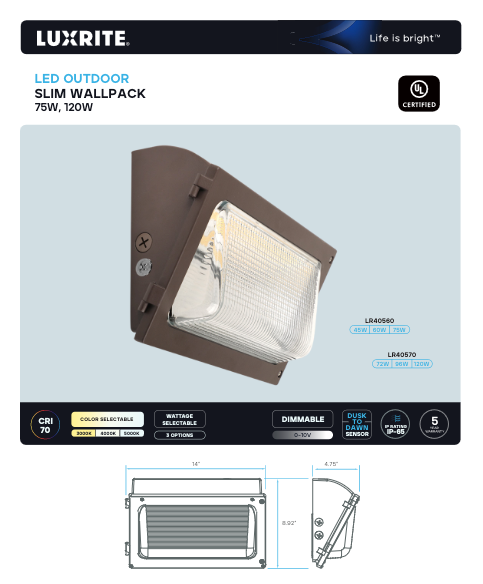

LR40560, LED OUTDOOR SEMI CUT-OFF SLIM WALLPACK 75W, 120W
