SPECIFICATIONS

  • Item numberLR36159
  • Item description

    LED/EDRV/MT288W/24V/UNV/D/JB

OUTPUT

  • DC voltage 24V
  • Rated Current 3*4A
  • Rated Power 288W
  • Voltage Tolerance ±0.5V
  • Voltage Regulation ±0.5%
  • Load Regulation ±1%

INPUT

  • Voltage Range 100-277VAC
  • Frequency Range 47-63Hz
  • Power Factor(Typ.)@ full load 0.99 @ 120VAC - 0.95 @ 277VAC
  • THD(Typ.)@ full load <20%
  • Efficiency(Typ.)@ full load 87% @120VAC 89%@277VAC
  • AC Current(Max.) 3.6A @ 100VAC
  • Inrush Current (Typ.) 35A, 960us @120VAC - 43A, 1ms @ 277VAC
  • Leakage current <0.50mA

Protection

  • Over Loading ≤120%
  • Over temperature 213 ± 50°F

Environment

  • Working TEMP. - 40~ +140°F
  • Working Humidity 20~90%RH
  • Storage TEMP. Humidity - 40~ +176°F
  • TEMP. coefficient ±0.03% /ºC (0~50ºC)
  • Vibration 10~500Hz

Safety & EMC

  • Safety standards UL8750
  • Withstand voltage 1.88KVAC
  • Isolation resistance 100M_x001F_/500VDC/25ºC/70%RH
  • EMC EMISSION FCC Part 15B

MISC

  • POWER FACTOR 0.99 @ 120VAC - 0.97@ 277VAC
  • DIMMABLE TRIAC
  • DIMMING RANGE 10-100%
  • DIMMING TYPE Forward phase, Reverse phase, Triac, MLV, ELV
  • LOAD 10-100%

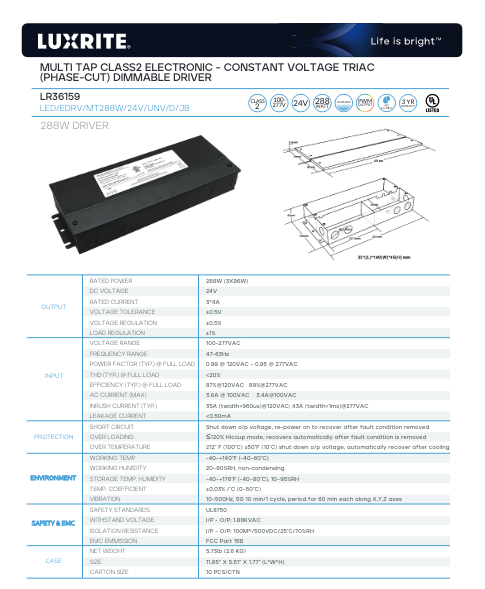

LR36159 ENCLOSED 288W MULTI-TAP ELECTRONIC CONSTANT VOLTAGE CLASS 2
